Fleet Island-Friendly Mini-Bulk
All-in-one turn-key DEF storage & dispensing systems for fleet managers wanting to dispense DEF right away.
Image is not available
Image is not available
Slider

Fuel Island-Friendly Fleet System:
400 & 1000 Gallon Mini-Bulk Turn-Key Solutions

KleerBlue offers several systems tailored to schools, municipalities, trucking companies and other fleets depending on storage and dispensing capacity needed. Of those, KleerBlue’s turn-key 400 & 1000 gallon mini-bulk systems are the quickest and simplest to install so you can begin dispensing DEF right away.

KleerBlue’s all-in-one Fleet Fueling Island-Friendly systems stand out from other similar systems in the marketplace. Because DEF freezes at 12˚F, it requires special insulation and heating considerations to ensure you can continue to service vehicles in the most extreme environments.

INTEGRATE INTO YOUR EXISTING OPERATIONS

Don’t spend extra money trying to make your DEF solution work with your current site infrastructure.

  • Each KleerBlue mini-bulk system is engineered to fit on a standard fueling island.
  • The included KleerBlue APEX or REGAL fleet dispenser or optional commercial dispenser are designed to interface to your Fuel Management System (FMS).
  • Optionally, the tank can operate remotely and/or with a 3rd party dispenser.
SERVICE CUSTOMERS IN EXTREME COLD

Since DEF requirements have come into effect, KleerBlue’s systems have proven to be the industry’s most reliable, even during the harshest winters.

  • Each system features 2 heaters controlled by an automatic thermostat- a primary and a backup in case of heating failure.
  • R16 industrial-grade insulation on sides, bottom and top of tank is not only easier on the heaters, it ensures that even in the event of a power failure DEF will stay in liquid form for days. This means when power comes back on, you’re ready to go. It also protects against extreme heat.
PROTECT YOUR INVESTMENT & AGAINST LEAKS

Thanks to our 25+ history in the PEI industry, we understand the beating your equipment can take between day-to-day wear and tear, weather, and customer abuse.  That’s why our equipment was engineered to withstand the most challenging environments.

  • The tank design features mechanical overflow protection.
  • Secondary containment design ensures even in the event of a leak, the liquid will stay between the inner and outer walls.
  • The tough HDLPE polyethylene outer double wall is UV protected, corrosion proof, and impact resistant.
  • Lockable ball valve in a lockable fill access compartment protects against possible DEF theft .
  • The all-in-one nature of the system allows you to relocate the unit and/or resell it as DEF demand grows.
START SELLING DEF QUICKLY

Need a more efficient way of fueling your new diesel vehicles?

  • Each system comes flushed, pre-wired, and ready to install.
  • An anchor kit is included to help secure the unit to the ground.
  • The tank includes indentations to allow a fork lift to put the unit in place or moved around the site as DEF demand grows.
OPTIONAL FEATURES

Need something other than the standard system? Consider these options.

  • Replace standard tank gauge with a 3rd party aboveground tank gauge including (but not limited to) Veeder Root, Incon and Centuron.
  • Swap out the standard blue tank color for tan color (1000 gallon unit only).
  • And more!  Call for details.



DIMENSIONS/SPECIFICATIONS

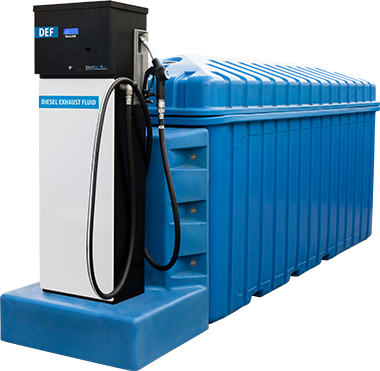

KleerBlue 400 Gallon Fleet Fuel Island-Friendly Mini-Bulk Turn-Key System with REGAL

Standards & Approvals:

  • ISO 22241 - 3 & 4
  • PEI RP1100
  • CSA Listed - C22.2, U/L 508, ANSI/UL Std. No. 50
  • Tank Patent No: US 9,669,991 B1

Operating Temperature:

  • -22˚F/-30˚C to 130˚F/54˚C

Size & Dimensions:

  • Fueling island friendly widths
  • 38” width x 190” length x 63” height
  • Dimensions reflect standard lane-oriented affixed KleerBlue APEX dispenser

Tank Containment:

  • Triple wall containment
  • Single wall polyethylene primary tank
  • Double wall HDLPE polyethylene containment shell: UV8 protected, corrosion proof and maintenance free
  • True 400 gallon capacity

Heating & Insulation:

  • Redundant heating
  • R16 industrial-grade insulation on bottom, sides and top of tank
  • 400 gallon: 200 watt tank pad heaters
  • Automatic thermostat

Electronics:

  • Three (3) 20 amp 115V AC circuits required
  • Local digital readout tank gauge mounted weatherproof/corrosion proof enclosure displaying product volume
  • Dispenser specifications can be found in respective dispenser brochure

Pump:

  • Submersible pump or optional manifolded submersible pumps
  • No priming required
  • Rated for 400,000 start/stop cycles
  • Up to 18 GPM (recommended max per dispenser is 10 gpm)

Security/Accident Prevention:

  • Lockable fill access compartment
  • 2” fill port with stainless locking valve located in sealed fill box
  • Mechanical overfill prevention
  • Electronics located outside of tank enclosure to eliminate vapor related problems
  • Impact resistant outer tank & triple wall secondary containment
  • Primary and secondary tank vents
  • Dial thermometer in the fill access compartment for monitoring tank temperature
  • Option: High & low temperature & product alarms
  • Option: 3rd party aboveground tank gauge including (but not limited to) Veeder Root, Incon and Centuron

Fill Inlets:

  • Heated and insulated inlet plumbing
  • 2” with ball valve and check valve
  • Option: 2” stainless steel drybreak (Parker, OPW or TODO)

Dispenser:

  • KleerBlue APEX or REGAL (as shown) comes standard
  • Lane orientation is standard, Island orientation is optional
  • Option: KleerBlue APEX or REGAL (remote)
  • Option: KleerBlue Commercial dispenser
  • Option: 3rd Party dispenser(s) (attached or remote)

Installation:

  • Forklift compatible
  • Pressure-tested before shipment
  • Completely pre-piped and wired
  • Anchor kit



DIMENSIONS/SPECIFICATIONS

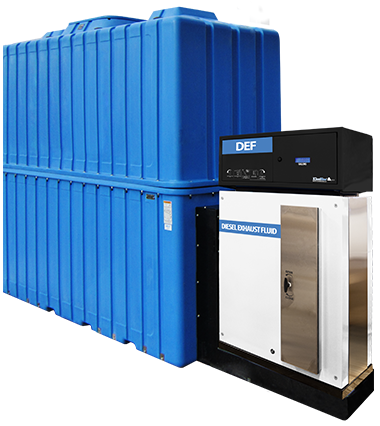

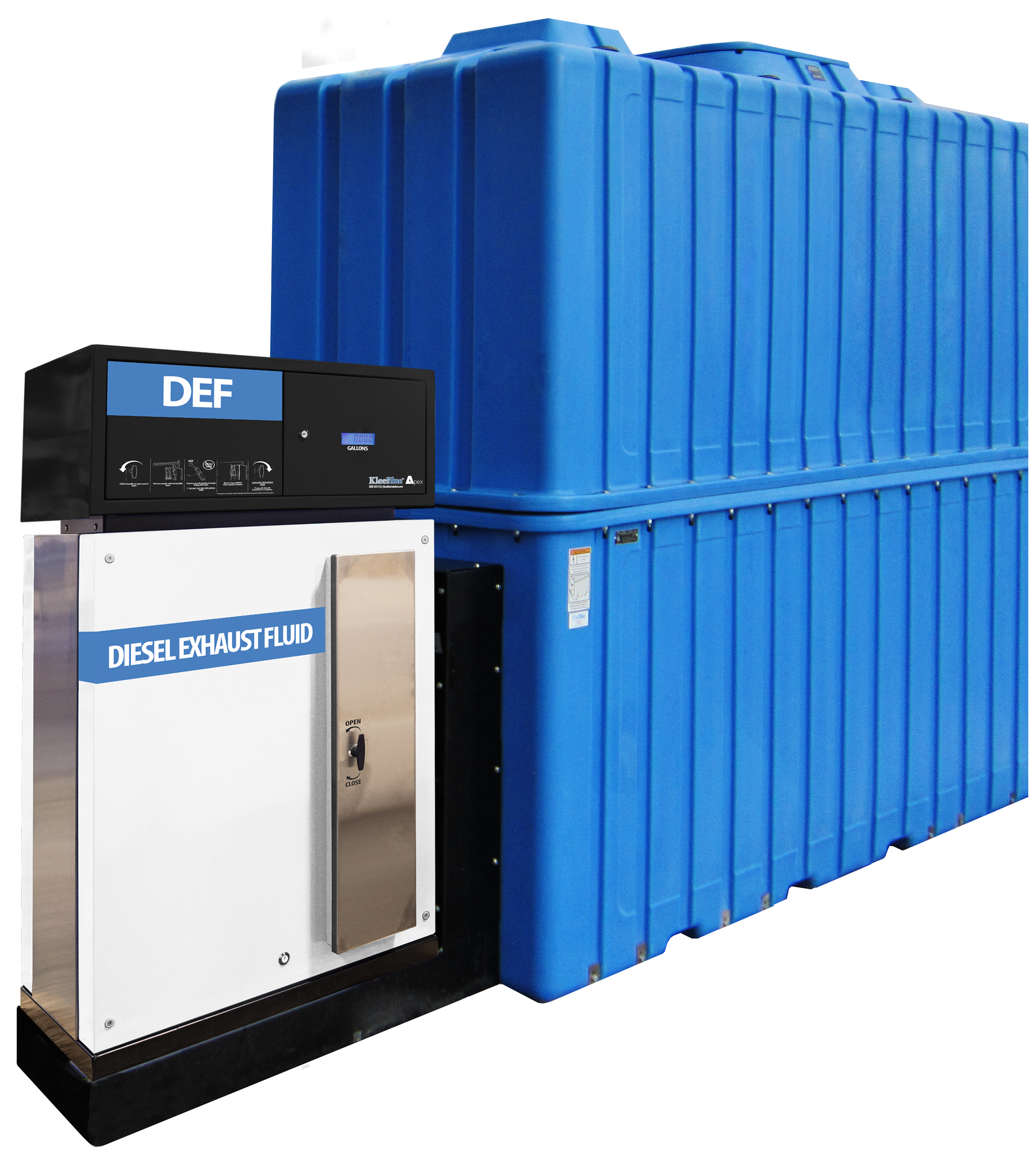

KleerBlue 1000 Gallon Retail Fuel Island-Friendly Mini-Bulk Turn-Key System with APEX

Standards & Approvals:

  • ISO 22241 - 3 & 4
  • PEI RP1100
  • CSA Listed - C22.2, U/L 508, ANSI/UL Std. No. 50
  • Tank Patent No: US 9,669,991 B1

Operating Temperature:

  • -22˚F/-30˚C to 130˚F/54˚C

Size & Dimensions:

  • Fueling island friendly widths
  • 44” width x 190” length x 106” height
  • Dimensions reflect standard lane-oriented affixed KleerBlue APEX dispenser

Tank Containment:

  • Triple wall containment
  • Single wall polyethylene primary tank
  • Double wall HDLPE polyethylene containment shell: UV8 protected, corrosion proof and maintenance free
  • True 1000 gallon capacity

Heating & Insulation:

  • Redundant heating
  • R16 industrial-grade insulation on bottom, sides and top of tank
  • 450 watt immersion heaters
  • Automatic thermostat

Electronics:

  • Three (3) 20 amp 115V AC circuits required
  • Local digital readout tank gauge mounted weatherproof/corrosion proof enclosure displaying product volume
  • Dispenser specifications can be found in respective dispenser brochure

Pump:

  • Submersible pump or optional manifolded submersible pumps
  • No priming required
  • Rated for 400,000 start/stop cycles
  • Up to 18 GPM (recommended max per dispenser is 10 gpm)

Security/Accident Prevention:

  • Lockable fill access compartment
  • 2” fill port with stainless locking valve located in sealed fill box
  • Mechanical overfill prevention
  • Electronics located outside of tank enclosure to eliminate vapor related problems
  • Impact resistant outer tank & triple wall secondary containment
  • Primary and secondary tank vents
  • Dial thermometer in the fill access compartment for monitoring tank temperature
  • Option: High & low temperature & product alarms
  • Option: 3rd party aboveground tank gauge including (but not limited to) Veeder Root, Incon and Centuron

Fill Inlets:

  • Heated and insulated inlet plumbing
  • 2” with ball valve and check valve
  • Option: 2” stainless steel drybreak (Parker, OPW or TODO)

Dispenser:

  • KleerBlue APEX or REGAL (as shown) comes standard
  • Lane orientation is standard, Island orientation is optional
  • Option: KleerBlue APEX or REGAL (remote)
  • Option: 3rd Party dispenser(s) (attached or remote)

Installation:

  • Forklift compatible
  • Pressure-tested before shipment
  • Completely pre-piped and wired
  • Anchor kit
