Tote/IBC Dispensing Systems
Dispense DEF from 275 and 330 gallon totes. KleerBlue offers a wide range of systems at various flow rates.
Image is not available
Image is not available
Slider

Avoid DEF contamination by using a closed system dispensing solution. KleerBlue offers several options including a side-mounted electric, top-mounted electric, and air-driven dispenser. Each electric option is available with or without a meter and with a 12 or 110-volt motor.

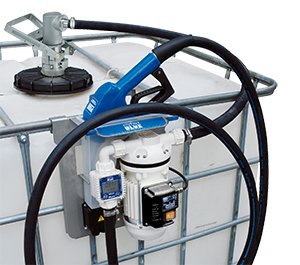

SIDE MOUNTED ELECTRIC PUMP OPTION
  • 8 GPM capability
  • Self-priming membrane pump,
  • 12 or 110-volt motor
  • Energy-saving built-in timer
  • Optional meter
  • 20' Delivery hose
  • Stainless steel automatic shut-off nozzle with swivel end
  • Suction hose
  • Tote side mount bracket
  • Stainless steel Micro Matic RSV dispense couple for a quick connection and drybreak release


AIR-DRIVEN OPTION
  • 17.5 GPM capability
  • Non-metallic polypropylene pump
  • Double diaphragm
  • Maximum of 100 PSI operating pressure
  • Top-mounted bedplate
  • Meter
  • Micro Matic-type coupler
  • Suction and discharge hose
  • Stainless steel automatic nozzle
  • Air-regulator (not included) is required for safe and satisfactory service




Dispense DEF from 275 and 330 gallon totes/IBCs where a closed system isn't required with these affordable dispensers. KleerBlue offers several options including a top-mounted electric, air-driven, and gravity dispenser. The electric and air-driven options are available with or without a meter.

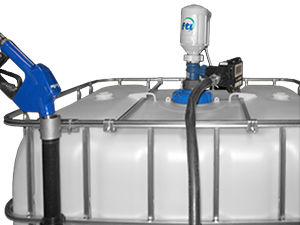

110-VOLT ELECTRIC OPTION
  • 9-10 GPM capability
  • Self-priming immersion pump
  • 110-volt electric motor
  • 12' coupled delivery hose (30' maximum)
  • Optional meter with re-settable display
  • Stainless steel automatic shut-off nozzle and swivel
  • Suction hose
  • Nozzle holder
  • Screw clamps and thread sealant


GRAVITY OPTION
  • 9' hose
  • Manual nozzle
  • Vent
  • All required fittings
