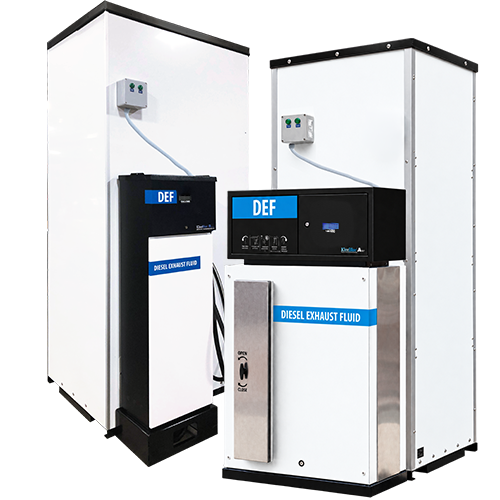

Begin offering DEF at your facility with minimal interruption. Designed with a tiny footprint, the KleerBlue’s Ultra 500 and Ultra 1000 turn-key solutions can be quickly installed almost anywhere at your facility. They come assembled, pre-wired and pre-plumbed with forklift access points. The sleek, glossy white exteriors are easy to clean and maintain. With no bottom or sidewall outlets, the Ultra 500 and Ultra 1000 avoid leaks and will continue to look good for years to come!
Smallest Footprints Yet!
Maximize storage while minimizing fueling-island space requirements.

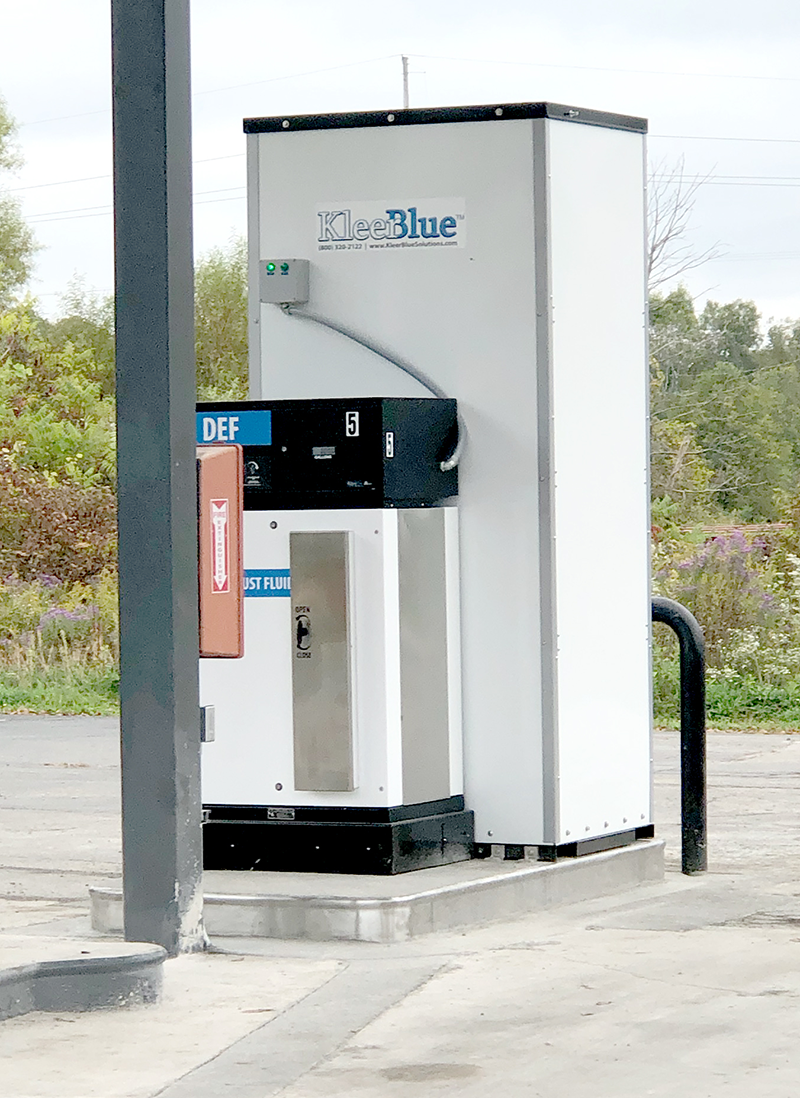

500 Gallon
- 500 gallons useable capacity (528 gallons brimful capacity) combined with overfill protection prevents inventory loss.
- Enclosure base is only 48” long x 36” wide! (5” additional clearance required for controls.)

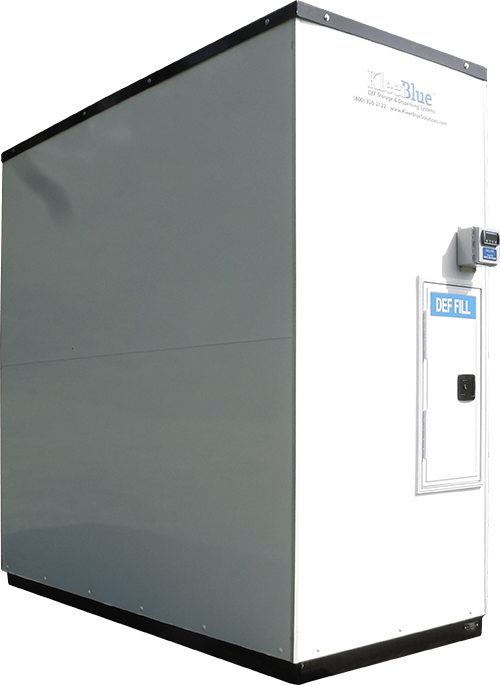

1000 Gallon
- 1000 gallons useable capacity (900 gallons brimful capacity) combined with overfill protection prevents inventory loss.
- Enclosure base is only 96” long x 46” wide!
Cold Weather Ready
- Insulation protects DEF against both extreme heat and cold.
- Efficient heating system ensures you can pump DEF even in cold temperatures.
Quick, Cost-Effective Installation
- Turn-Key enclosure is assembled, pre-wired, pre-plumbed and tested.
- The powder-coated steel base frame includes forklift access points for easy handling.
Design that Looks Great at Your Facility
Above ground DEF storage doesn't have to be an eyesore.
- The white weather-proof exterior can be customized to match your overall facility branding and design.
- Exterior is smooth and glossy for easy-to-clean, long-term maintenance.
Standards & Approvals
- ISO 22241-3&4
- PEI RP1100
Size & Dimensions
- Capacity: 500 gallons useable capacity (528 gallons brimful capacity)
- Footprint: 48" wide x 36" long x 107" high
- Clearance: 53" wide x 36" long x 107" high
Operating Temperature
- -22˚F/-30˚C to 130˚F/54˚C
Tank and Enclosure
- Smooth surface white aluminum composite panels
- HDLPE primary tank
- High-performance composite galvanized steel extension panels
- Powder coated steel base frame
- Removable roof and back panel
Heating & Insulation
- Insulation
- Efficient heating system
- Option: Thermostatically controlled heating system
- Option: Exhaust fan
Electrical
- Operates on two (2) 115V 20 AC
- External digital level display
- UL-508A pump and control box
Pump
- DEF submersible pump
Security/Accident Prevention
- Lockable access door
- Mechanical overfill protection
- Pressure relief system
- No bottom or sidewall outlets (leak prevention)
Fill Inlets
- 2” stainless steel drybreak (Parker, OPW or TODO) or camlock coupler (Not included; specify when ordering.)
Dispenser compatibilities
- Compatible with KleerBlue Apex & Regal Fleet and 3rd party dispensers
- Dispenser riser recommended for plumbing
Installation
- Forklift compatible
- Completely assembled and wired (enclosure system)
- Anchor kit
Standards & Approvals
- ISO 22241-3&4
- PEI RP1100
Size & Dimensions
- Capacity: 1000 gallon brimful capacity (900 gallons usable)
- Footprint: 46" wide x 96" long x 101" high
Operating Temperature
- -22˚F/-30˚C to 130˚F/54˚C
- Option: Enhanced heading to -37˚F/-32˚C
Tank and Enclosure
- High-performance composite exterior panels
- HDLPE primary tank
- Powder coated steel base frame
- Top access manways
Heating & Insulation
- Insulation
- Efficient heating system
- Option: Enhanced heading to -37˚F/-32˚C
Electrical
- Operates on two (2) 120V amp circuits
- External digital level display
- UL-508A pump and control box
Pump
- DEF submersible pump
Security/Accident Prevention
- Lockable access door
- Mechanical overfill protection
- Pressure relief system
- No bottom or sidewall outlets (leak prevention)
Fill Inlets
- 2” stainless steel drybreak (Parker, OPW or TODO) or camlock coupler (Not included; specify when ordering.)
Dispenser compatibilities
- Compatible with KleerBlue Apex & Regal Fleet and 3rd party dispensers
- Dispenser riser recommended for plumbing
Installation
- Forklift compatible
- Completely assembled and wired (enclosure system)
- Anchor kit
